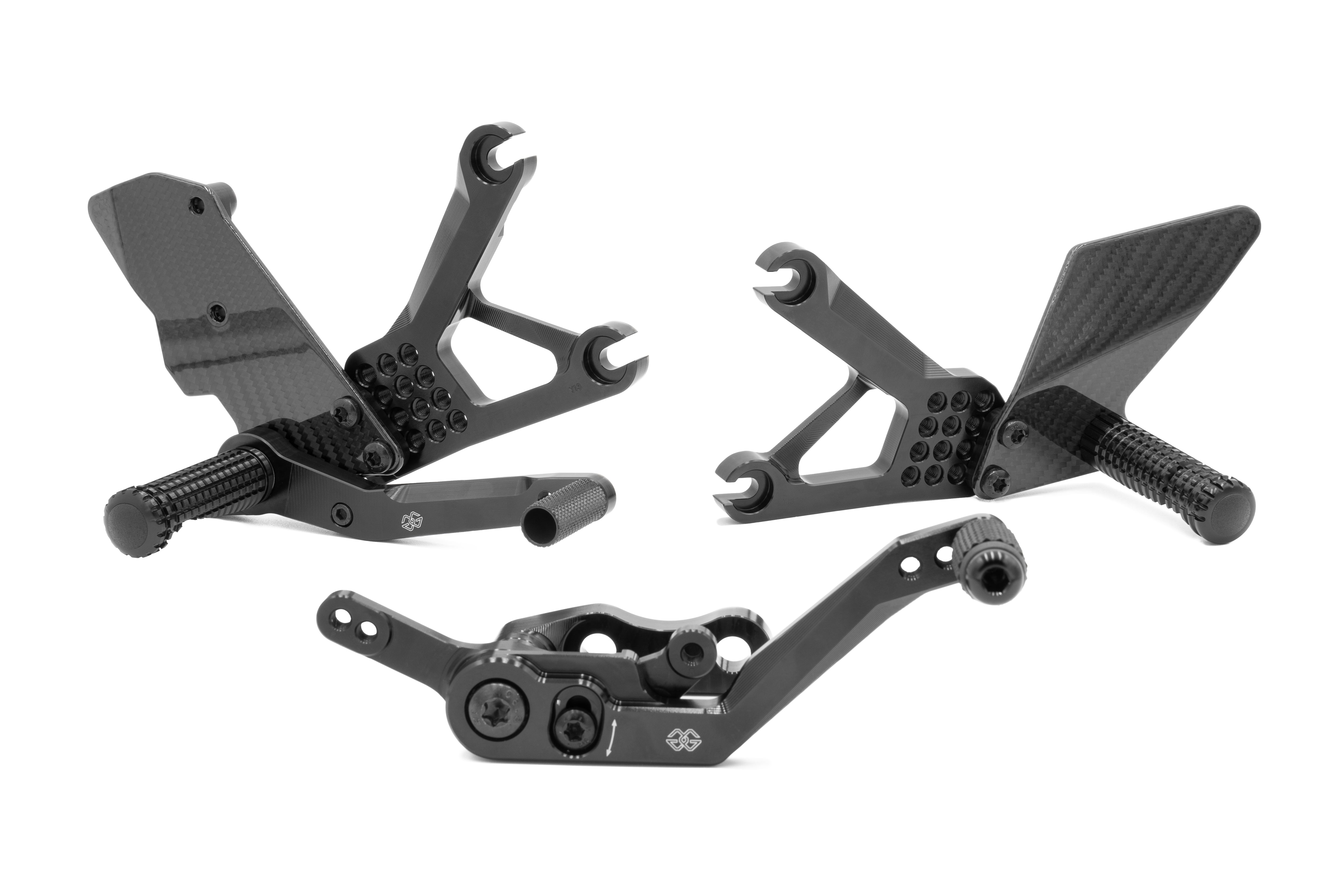

Gilles Tooling Footrest System AS31GT3 Yamaha Black

KEY FACTS
- MULTIVARIABLE SHIFTING SYSTEM.
- BRAKE AND SHIFT LEVERS WITH DOUBLE BALL BEARINGS.
- CUT-OUT FOR ULTRA-LIGHT WEIGHT.
- ADJUSTMENT RANGE = SEE ADJUSTMENT TABLE.
- SHIFTING SCHEME = NORMAL AND REVERSE SHIFTING POSSIBLE.
- EXTRAS = VARIOUS ADJUSTMENT OPTIONS: FOOTREST, SHIFTING TRAVEL, PEDAL LENGTH.
- MATERIAL = HIGH-STRENGTH ALUMINIUM.
- WEIGHT = 534g left, 634 right.
- HOMOLOGATION = RACING ONLY!
- SPARE PARTS SUPPLY = WE OFFER A SPARE PARTS SUPPLY FOR THIS PRODUCT.

MULTIVARIABLE FOOTREST SYSTEM
Our multivariable footrest system is the result of innovative engineering and offers a versatile solution for every rider. It allows you to customise various parameters such as footrest height, shift travel and pedal length to ensure an optimal riding experience. This system gives you the flexibility to configure your bike according to your personal preferences and requirements.

BRAKE AND SHIFTER LEVERS BACKlash-FREE DO UBLE BALL BEARINGS
Experience smooth and precise control with our double ball-bearing
brake and shifter levers, which ensure optimum performance on every ride.

Milled out for ultra-light weight
Our AS31GT3 features a special milled out section that not only reduces weight, but also improves the structural integrity of the component. By selectively removing material, the overall weight of the system is minimised, resulting in improved agility and handling of your motorbike without compromising on strength.

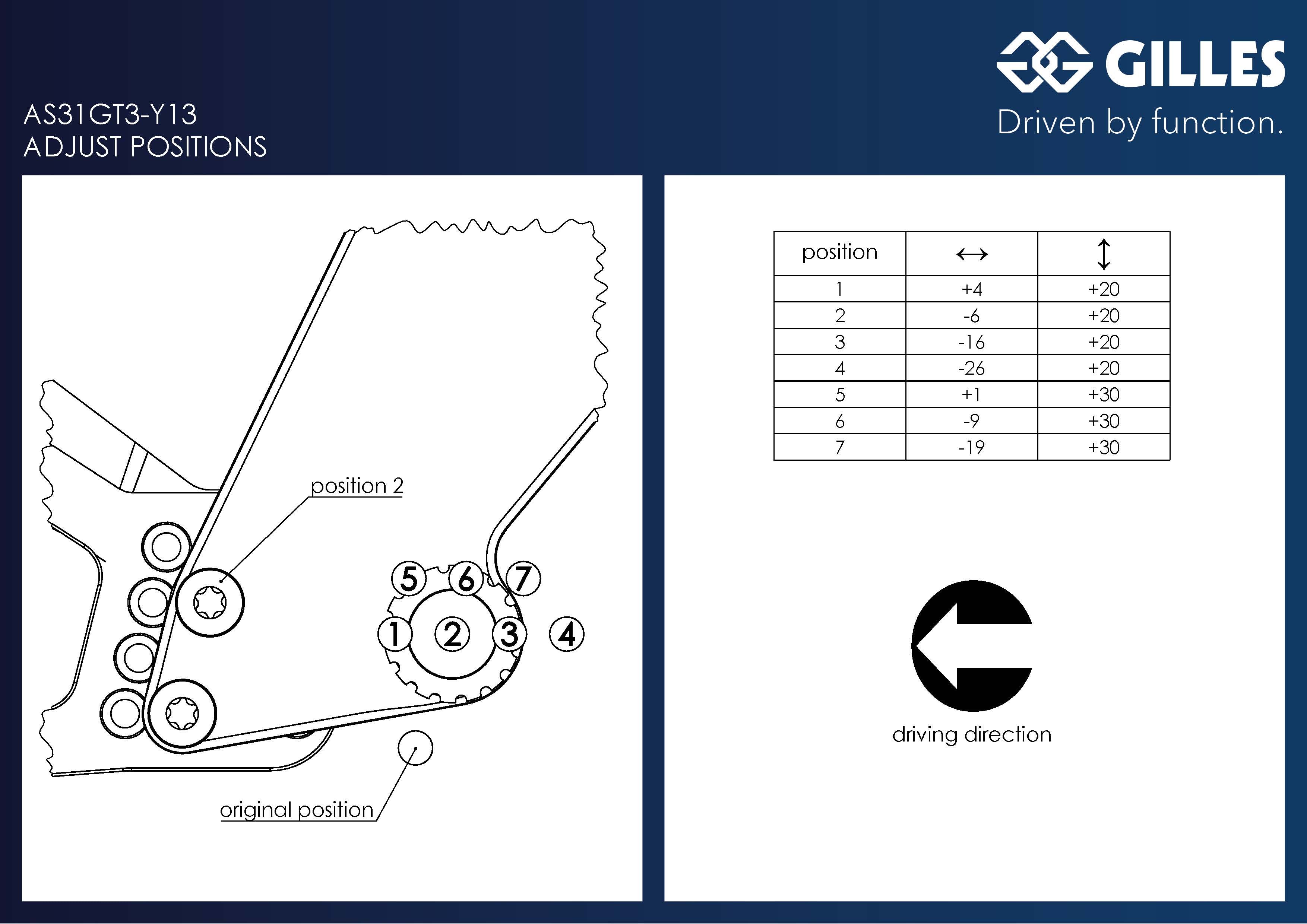

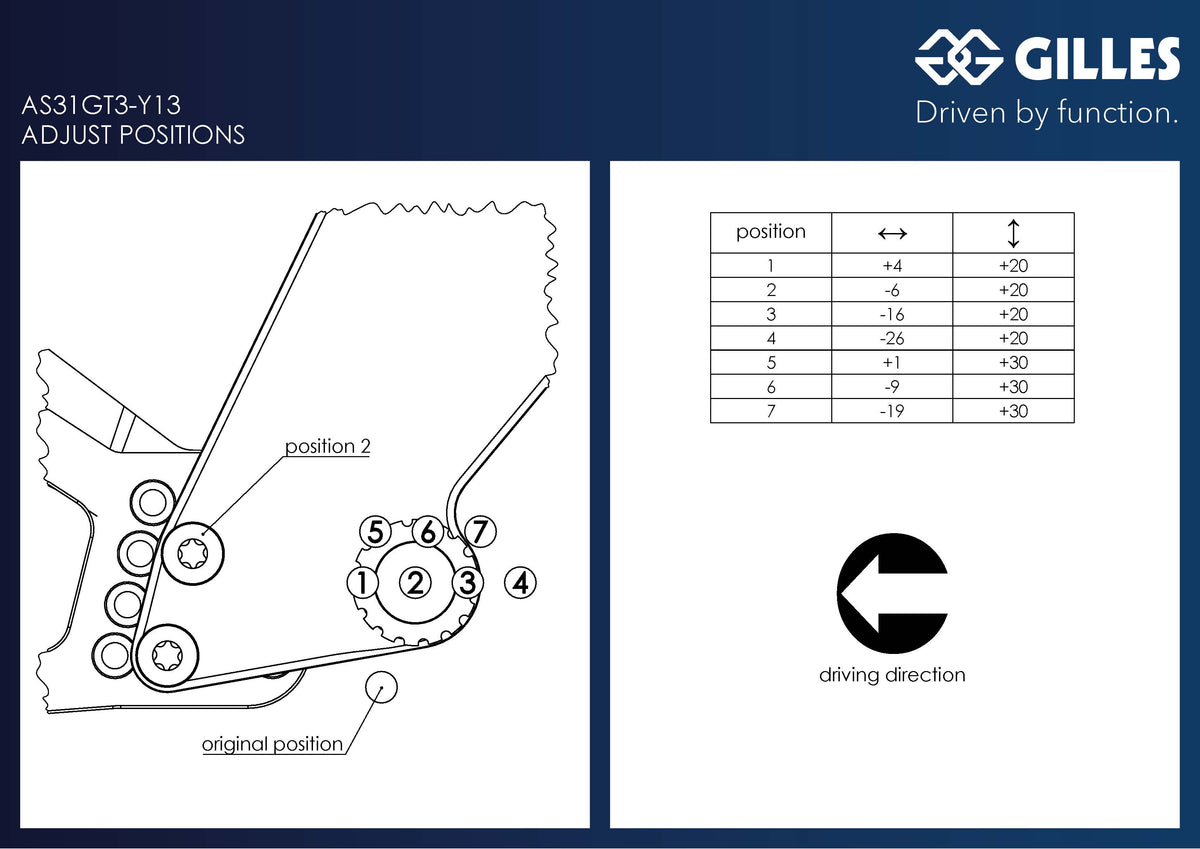

ADJUSTMENT RANGE
Optimise your riding experience and performance with our versatile adjustability.
See the adjustment table for details of the adjustment options,
which extend up to 30 mm upwards and 26 mm backwards.

SHIFTING CYCLE
This AS31GT3 is designed for both normal and reverse shifting and enables precise and responsive operation of the shift lever. Due to the special design, only normal shifting is possible, which ensures intuitive handling and a smooth shifting process.

MATERIAL = HIGH STRENGTH ALUMINIUM
Our footrest system is made of high-strength aluminium, a material known for its exceptional strength, durability and lightness. This high-quality material offers an optimal balance between weight and strength, resulting in improved performance and longevity. By using aluminium, we can offer a footrest system that meets the highest demands of demanding riders while offering low weight and outstanding robustness.

WEIGHT
With only 534g on the left and 634g on the right side,
our system minimises unnecessary weight and maximises performance.

HOMOLOGATION = RACING ONLY!
Our footrest system is designed exclusively for use on the racetrack and is therefore not permitted on public roads.
There is no homologation for the footrest system offered here.

SPARE PARTS SUPPLY
All individual parts can be ordered for most of our products.
Use the fitting instructions to identify the parts you need,
and enter the part number directly in the search field.

Enhance your riding experience and safety with our innovative footrest system
and unleash the full potential of your machine
