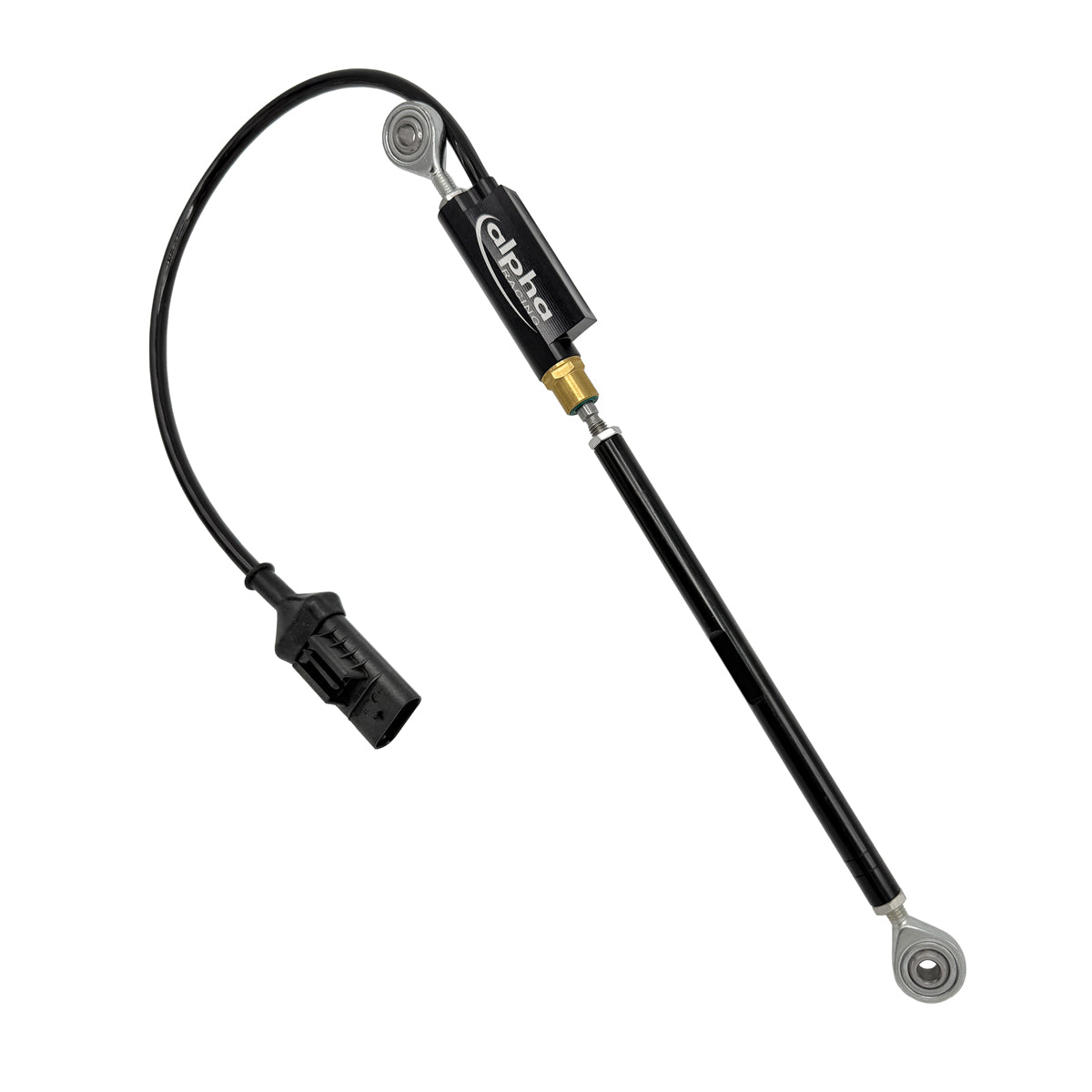

Alpha Racing Fast Shift Sensor

The Fast Shift Sensor is a compact, performance-optimized quickshifter, suitable for many BMW Motorrad Superbike models. The current version has an improved bearing and sealing of the sensor as well as a robust and precise design for use under high mechanical and thermal loads under racing conditions.

Technical features:
- Revised sensor version with optimized bearing and seal
- Shortened shift travel and reduced shift time for faster gear changes
- Shift direction possible in pull and push direction
- CNC-milled aluminium housing, black anodized
- Very low overall height
- Incl. shift rod, length: 155 mm
- Thread: M6 external / M6 internal
- (Re)programmable Hall sensor
- Spring-loaded measuring element, travel: ±3 mm, force range: max. ±25 kg
- Compatible with standard and motorsport electronics (M RCK)

The Fast Shift Sensor fulfills high requirements for precision, durability and integration capability in the toughest racing situations.

Weight: 0.175 kg

Delivery Scope

Fast Shift Sensor FSS
Shift rod, 155 mm
2x Ball joint head

Note

When using the OEM rearset system, a shorter shift rod (135 mm) must be used, see Accessories.
Installation on S 1000 RR models from 2015 to 2018 always requires the use of the 135 mm shift rod.
