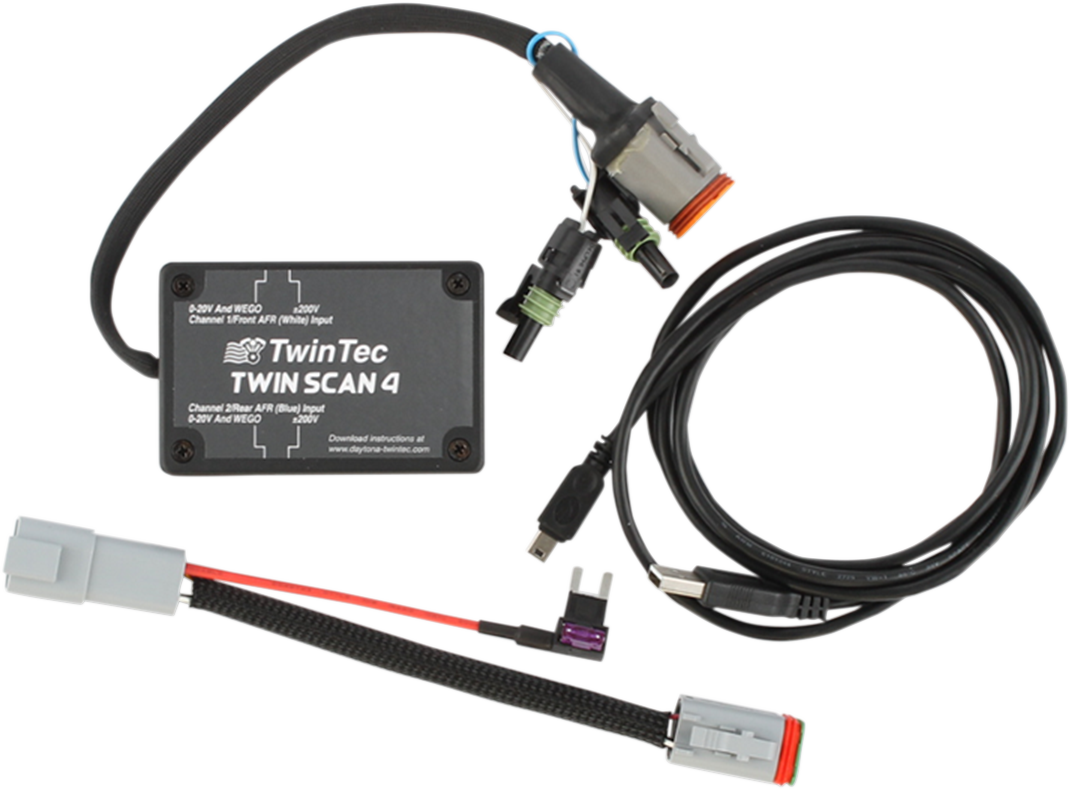

Daytona Twin TEC LLC Diagnostic Scan Tool - Twin Scan 4/ABS - Kit

• The ECM (engine control module) settings feature allows programming of the ACR (automatic compression release), EITMS (engine idle temp management system), cruise control enable/disable and active exhaust setting
• Reads and clears diagnostic trouble codes from engine control module (ECM), BCM (body control module), speedometer, tach, and anti-skid braking system (ABS)
• Reprogram and read key fobs, reprogram PIN and disable key fobs to eliminate them in the security system
• Twin Scan 4 ABS – utilizes a Windows PC for display – compatible with: Windows XP/7/8/10/11
• Features stand-alone data logging (logs data with a laptop PC attached to the unit)
• The stand-alone data logging feature can be especially useful for diagnosing hard to find intermittent trouble codes
• Recalibrate the speedometer, when you install a new speedometer
• Real time display of engine data on instrument panel type display
• Includes two analog inputs with 0-20 V or ± 200 V range
• Dual channel scopemeter capability for waveform display
• The analog inputs can also be used for air/fuel ratio (AFR)
• Capable of reprogramming the idle speed for testing
• Automatically triggers when a trouble code is set
• Shows data before and after code is set
• Also the ability to clear fuel trims
• Stores up to one hour of data
• Built-in data logging
• Compact size: 3.2" L x 2.2" W x 1" H

Notes

• Not all features are available for all models. Most features are available for almost all models through '16. For example, the '17 and newer models do not have the ability to adjust idle rpm and speedometer calibration.
• All models with the CAN data bus utilize the six pin Deutsch® style diagnostics connector.
