Feuling Parts Valve Spring Kit - With TI Retainers - M8

• Direct bolt-in replacements, no machining or rocker box clearancing required
• Machined from premiun-grade high tensile chrome silicon single-conical ovate wire
• Shot-preened with specially processed thermal heat treat and super NexTex® finish for fatigue life needed to exceed high demands in V-Twin engines

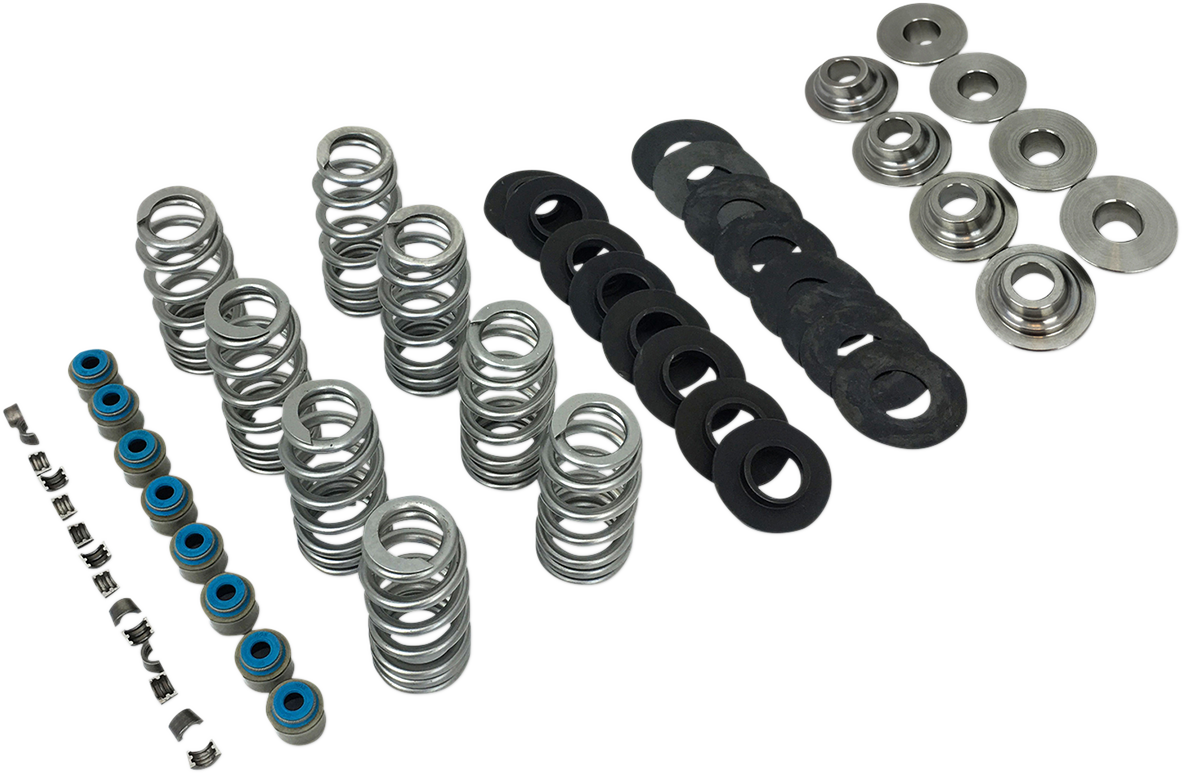

• Kit includes Endurance Beehive® valve springs, with or without titanium retainers (as noted), machined spring seats, seat shims, valve locks and Viton® valve seals
• Made in the USA
• Up to 0.565" lift
• Seat lb / installed height:
• 134 lb @ 1.375" (0.405" lift)
• 127 lb @ 1.405" (0.435" lift)
• 125 lb @ 1.415" (0.445" lift)
• 121 lb @ 1.435" (0.465 lift)
• 116 lb @ 1.455" (0.485" lift)
• 113 lb @ 1.470" (0.500" lift)
• 109 lb @ 1.490" (0.520" lift)
• 103 lb @ 1.520" (0.550" lift)
• 226 lb @ 0.970" Open Height
• Coil Bind @ 0.920"
• Cam specs measured on the lifter @ 0.050 lift with 1.61 rocker arm ratio

Notes

• Fits stock 6.00 mm valve stems with triple groove.
