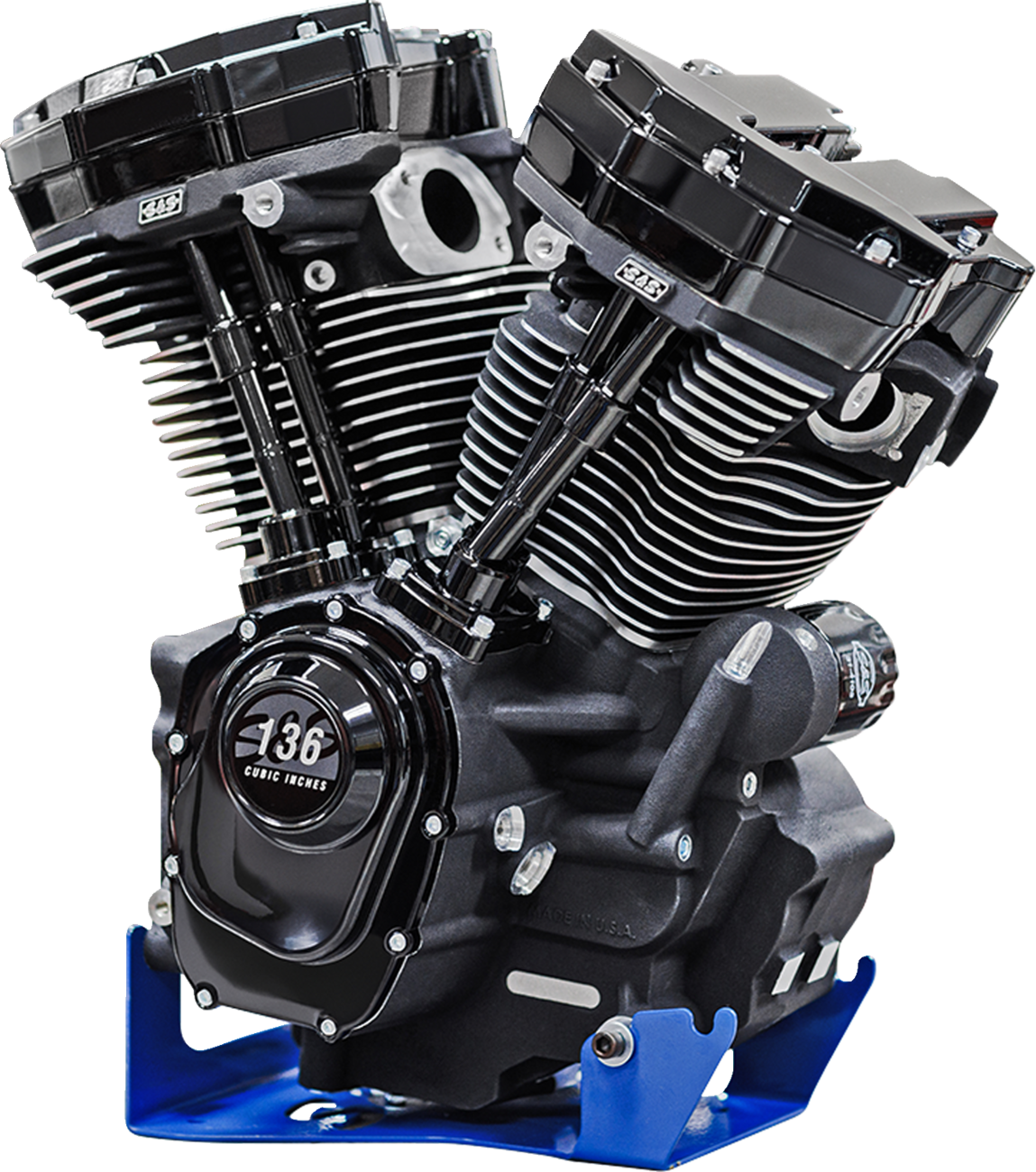

S&S Cycle MK136 Black Edition Engine - Oil Cooled - 49 State - M8 Touring

Cylinder Heads:

• High-flow cylinder heads with premium seats, guides, valves, springs, and seals
• +1.00 mm oversized intake and exhaust valves
• Valves are 0.030" longer than stock for improved valvetrain geometry
• 0.605" max lift valve spring
• 475G gear drive cam
• Enlarged cooling passage around the exhaust seats
• S&S exclusive breather boxes

Crankcase:

• Patented dual-spray piston cooling jets
• Precision machined oil scraper
• Enlarged oil sump
• Contoured floor allows oil to easily drain back to the sump

MK136:

• Retains stock engine height
• Includes forged pistons, S&S performance oil pump and cam support plate, premiun tappets and tappet cuffs, billet aluminum covers, sprocket shaft spacer, Champion spark plugs and cam cover badge
