Alpha Racing Brake Disc 320x5.5, Left

Our competition brake disc combines premium quality materials and state of the art manufacturing providing high performance braking action with optimal rider feedback.
alpha Racing brake disc with T-Floater system - the ultimate racing disc for the serious professional rider.
Also available in 6 and 7 mm thickness (Ø 320 mm).

Features:
Outer ring design ensures equal heat dispersion under high thermal stress while the brake pad contact surface is cleaned evenly.
Outer ring features an extra cooling slot on external perimeter.
The laser cut and precision grinded outer ring is fixed to a billet CNC machined aluminium carrier.
T-Floater system ensures precise controlled full floating action under the most severe racing conditions.
T-Floater pin-slot construction allows high mechanical load while exhibiting minimum wear.
T-Floater system is lightweight due to specially designed, hard anodized aluminium floaters.
Homologated for FIM Superbike & MotoAmerica.

Technical Specifications:
Carbon/steel friction ring
Aluminium carrier, hard anodized
Hole circle: 96 mm
Friction ring height: 33 mm
Offset: 10 mm
For use with: OEM caliper
Weight: 1.559 kg

For optimum braking performance, we recommend the use of Duo Sinter or Duo Carbon brake pads, see Accessories tab.

Delivery Scope

Brake disc, left side

Note

Fits to:
OEM forged aluminum wheels
OEM M-Carbon wheels
OZ Motorbike Gass SBK wheel set
PVM Racing wheel set (3V & 5Y)

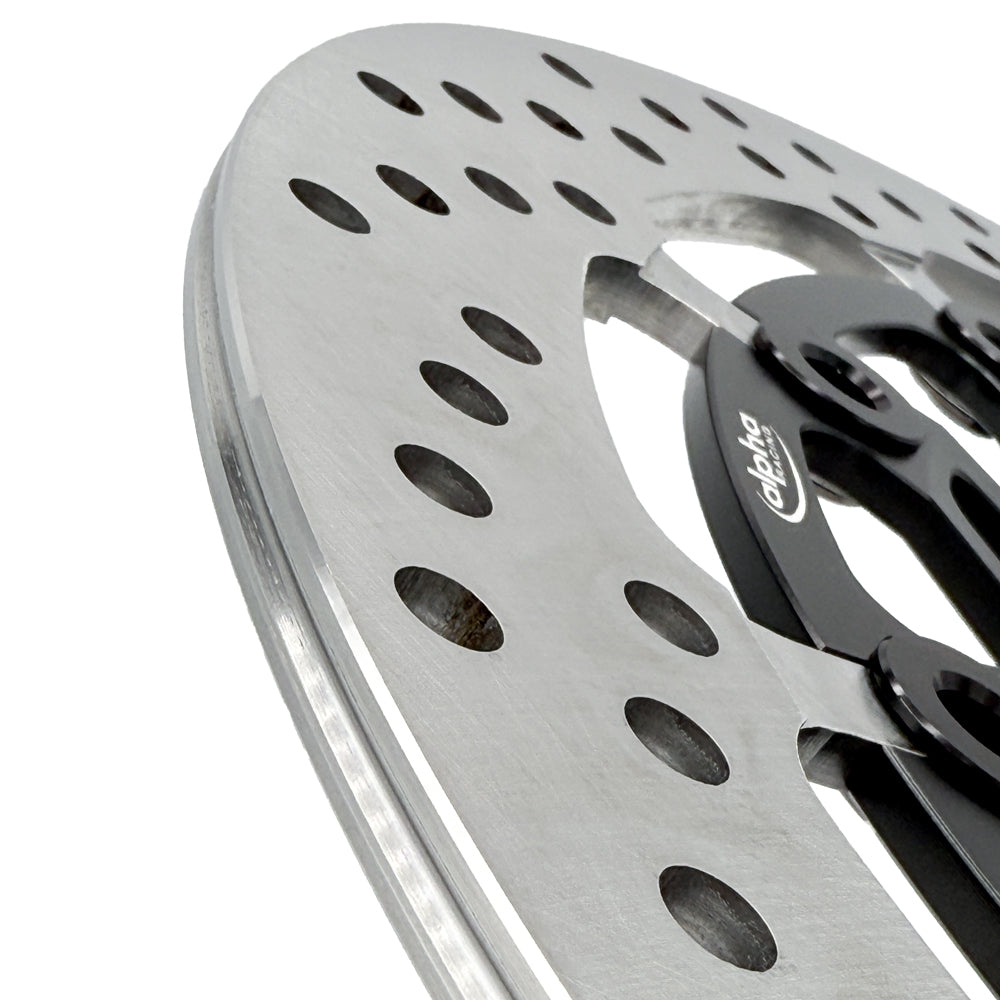

Picture shows 7 mm version.

For racetrack use only.
