MoTeC GPS Antenna, For M RCK

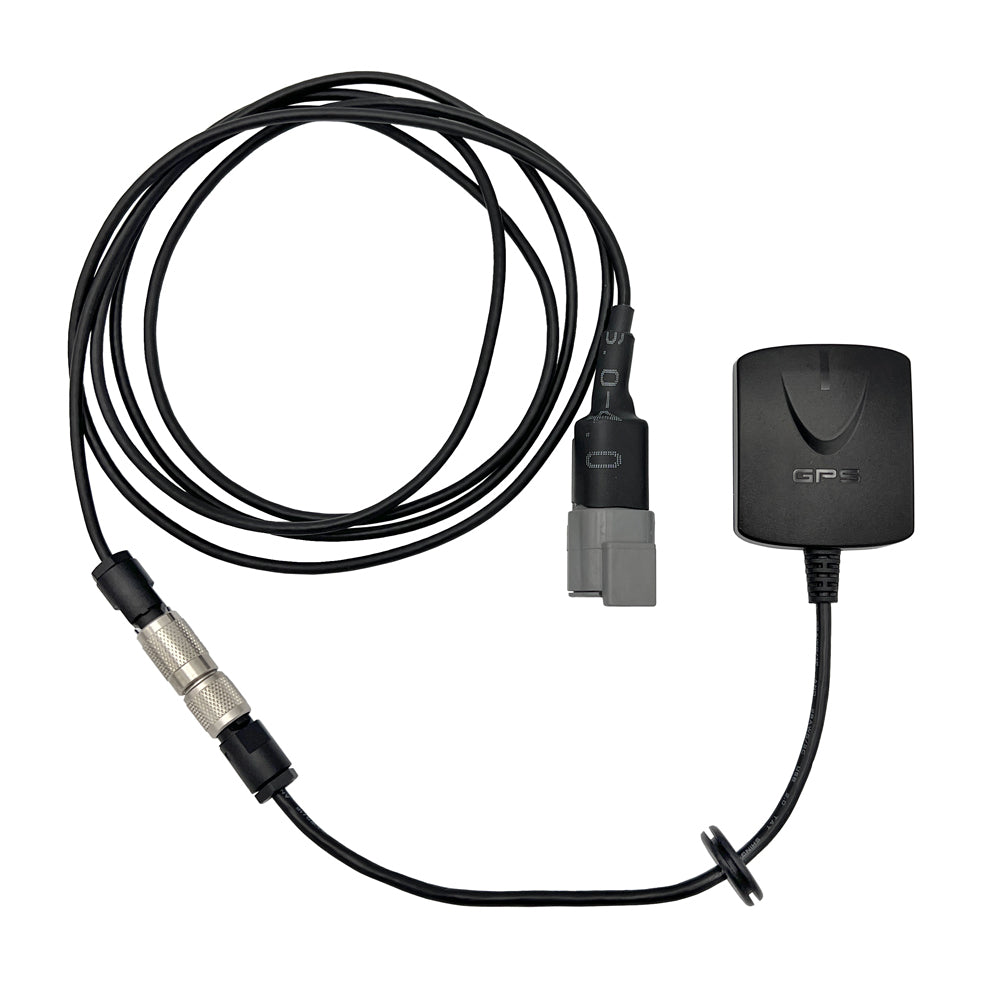

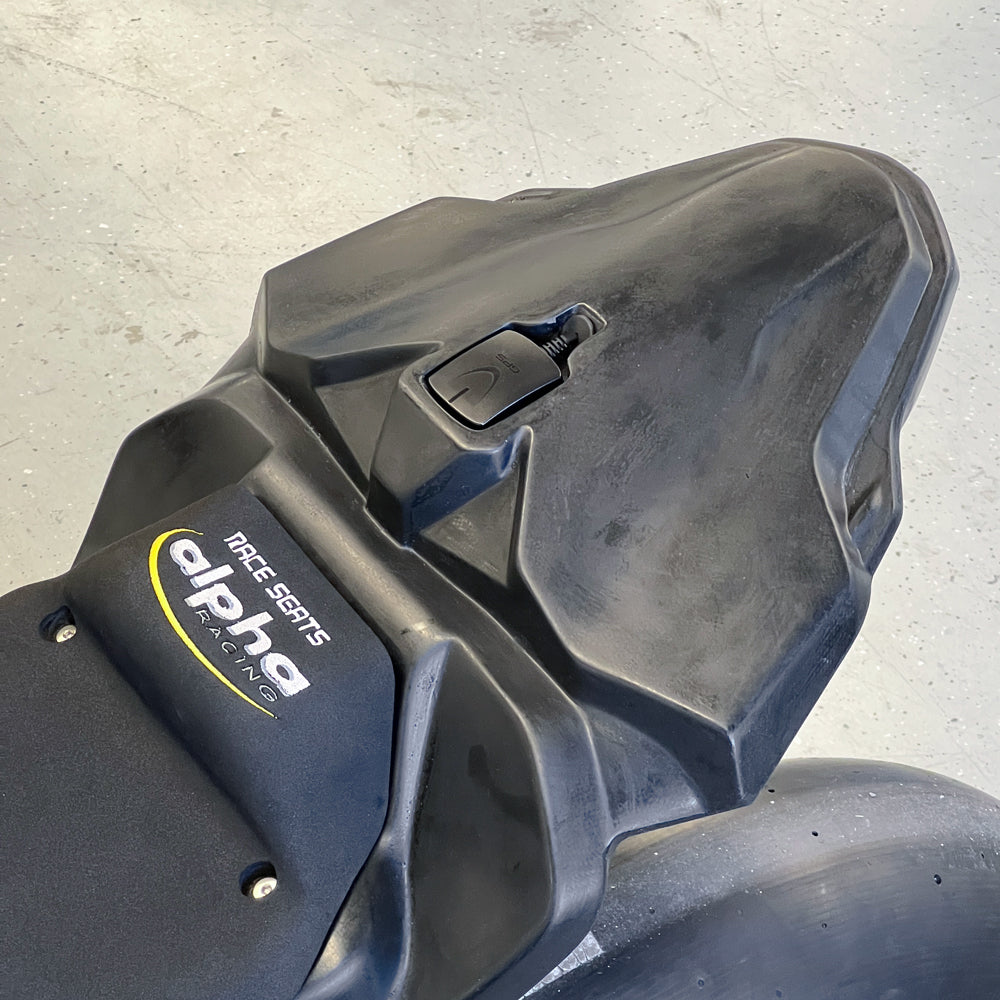

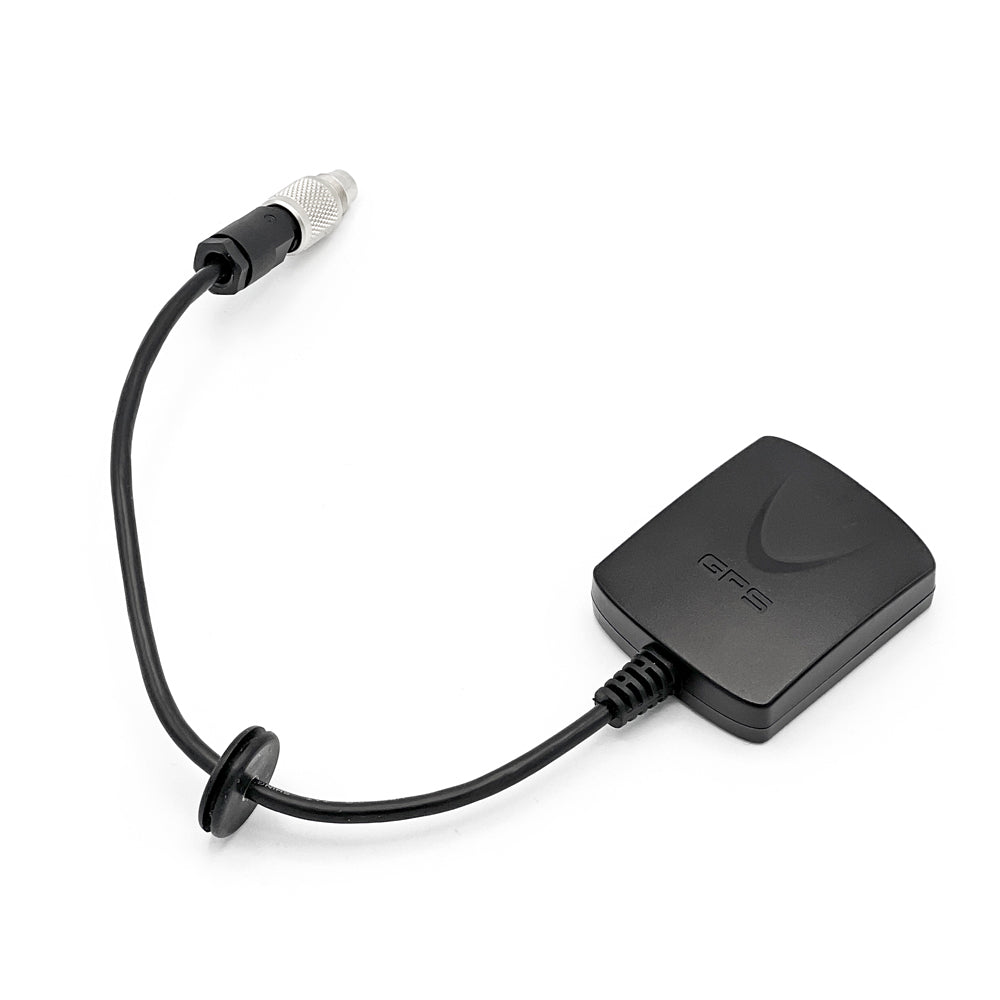

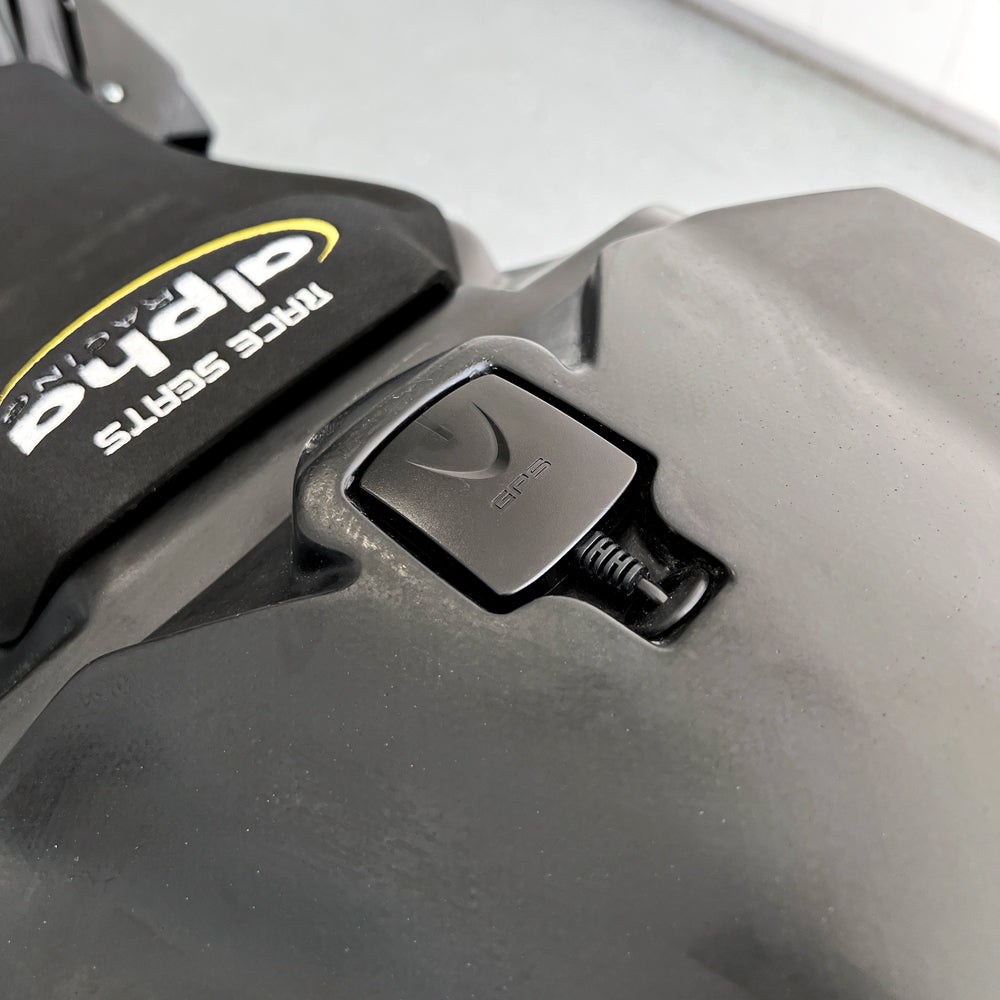

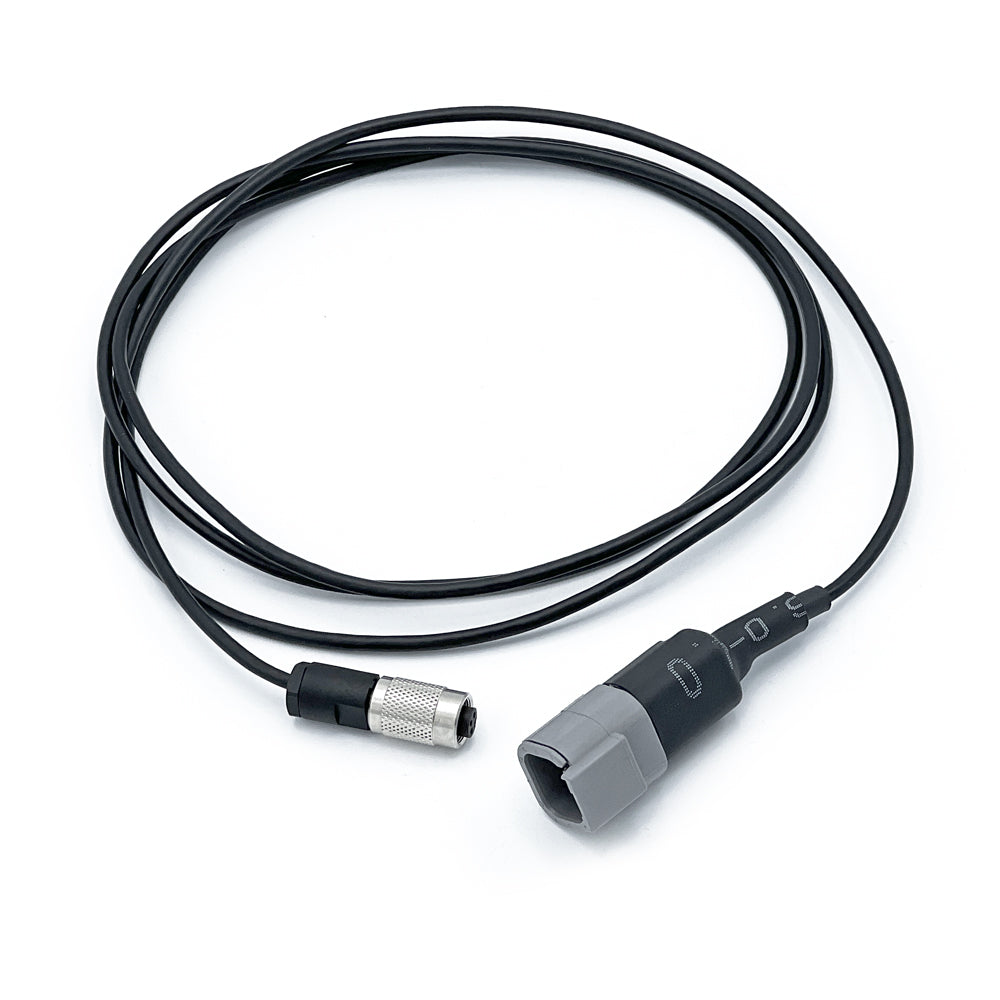

The GPS-L10 is a 10 Hz GPS receiver which combines the electronics and antenna into one small unit. It is required to record speed information, position on the track (lines) and lap times for the M RCK. The unit is fitted with a Binder connection and a Deutsch DTM connector for the M RCK wiring loom. Using the Binder connectors, the connection can be disconnected and the rear fairing can be removed along with the GPS antenna. The antenna unit is fixed in the recess on the rear panel by a magnetic connection.

- for M Race Calibration Kit wiring loom and MoTeC C125 dashboard
- with Binder connector for removing the race tail
- Update rate 10 Hz
- Dynamics 4 G
- Power supply voltage 4.0 – 6.0 V
- Case size 48 mm x 41 mm x 14 mm
- Built in antenna
- Mounting - magnetic base

Weight: 0.095 kg

Delivery Scope

GPS antenna
