S&S Cycle Camshaft Kit - 570G Gear Drive - Twin Cam

• Designed for 88" to 103" CID engines with compression ratios between 9:1 and 10:1
• Strongest from 3200-3700 rpm
• Increases valve timing accuracy by eliminating timing chain lash and loosely fit stock chain drive
• Reverses the rear cam's direction of rotation, providing additional operating clearance between cam lobes resulting in higher cam lifts
• Material must be removed from inner surface of stock gear cover to install
• A hydraulic press and other professional level tools required to install kit
• S&S recommends that adjustable pushrod/cover kit be used
• Cam bearings and gasket must be replaced when installing new cams

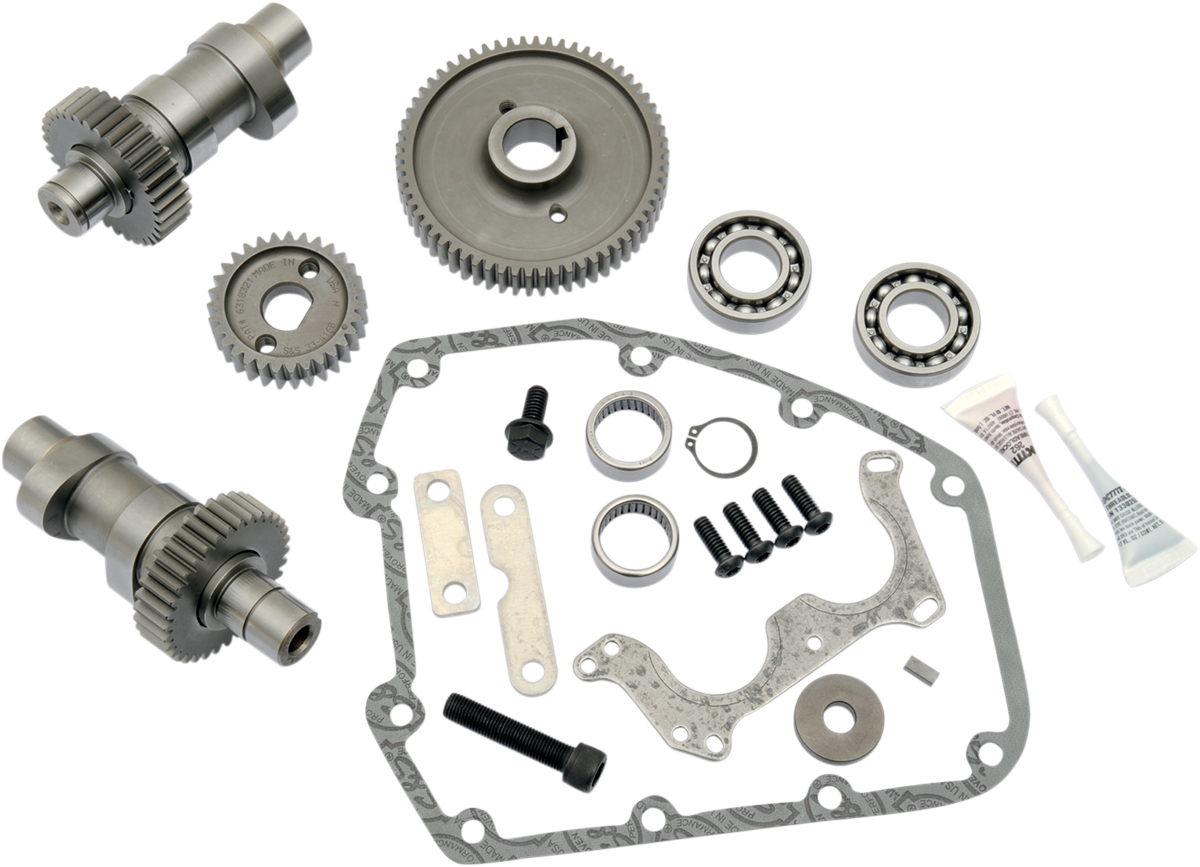

• Kit includes camshafts, gearcover gasket, bearings, oil passage block off kit, retaining ring, o-ring, inner and outer gears
• Made in the USA

Notes

• Due to the inherent characteristics of gear drives, you may experience more valve train noise.
• Installer must check coil bind, valve to valve clearance and valve to piston clearance.
